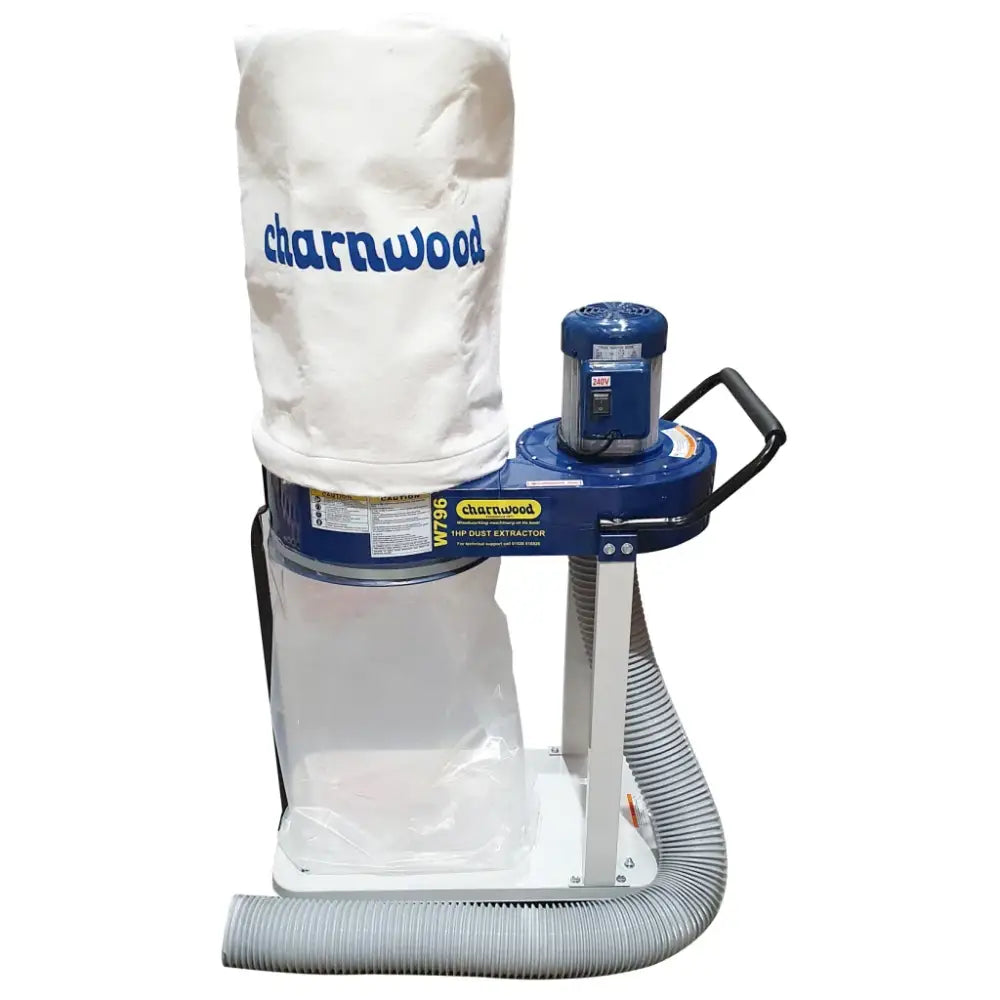

Charnwood dust extractor unit with collection bag

Single Phase Dust Extractor Unit for use with our Cardboard Shredder range

Our Charnwood Dust Extractor unit is designed to efficiently capture and significantly reduce airborne dust and cardboard particles when paired with our Cushion Pack Cardboard Shredders, enhancing both safety and air quality in your workspace. Suitable for use alongside intensive cardboard shredding machines, this dust extractor unit features a robust steel fan that ensures reliable, long-lasting performance.

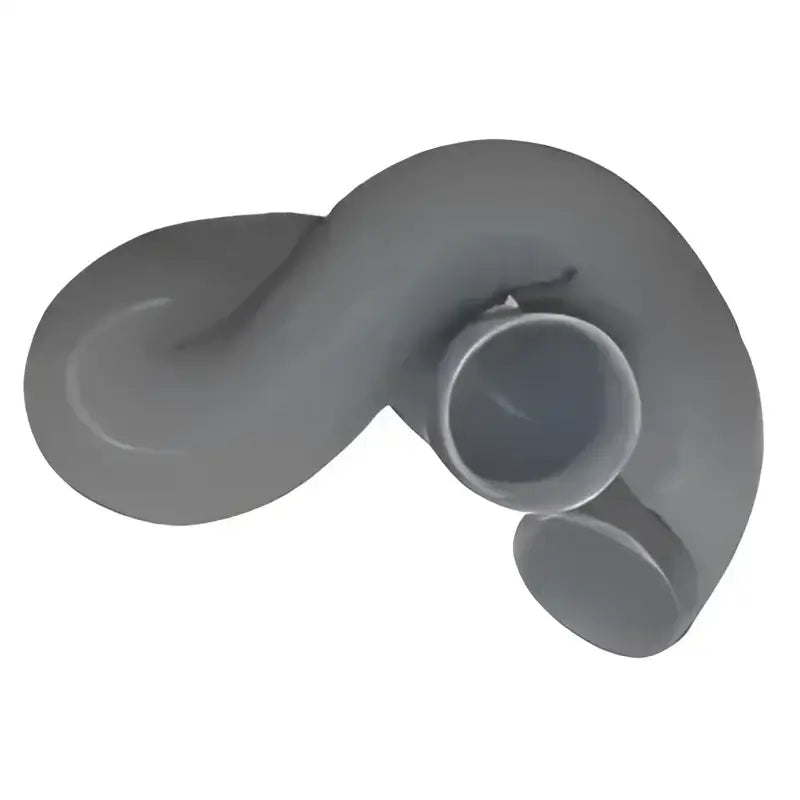

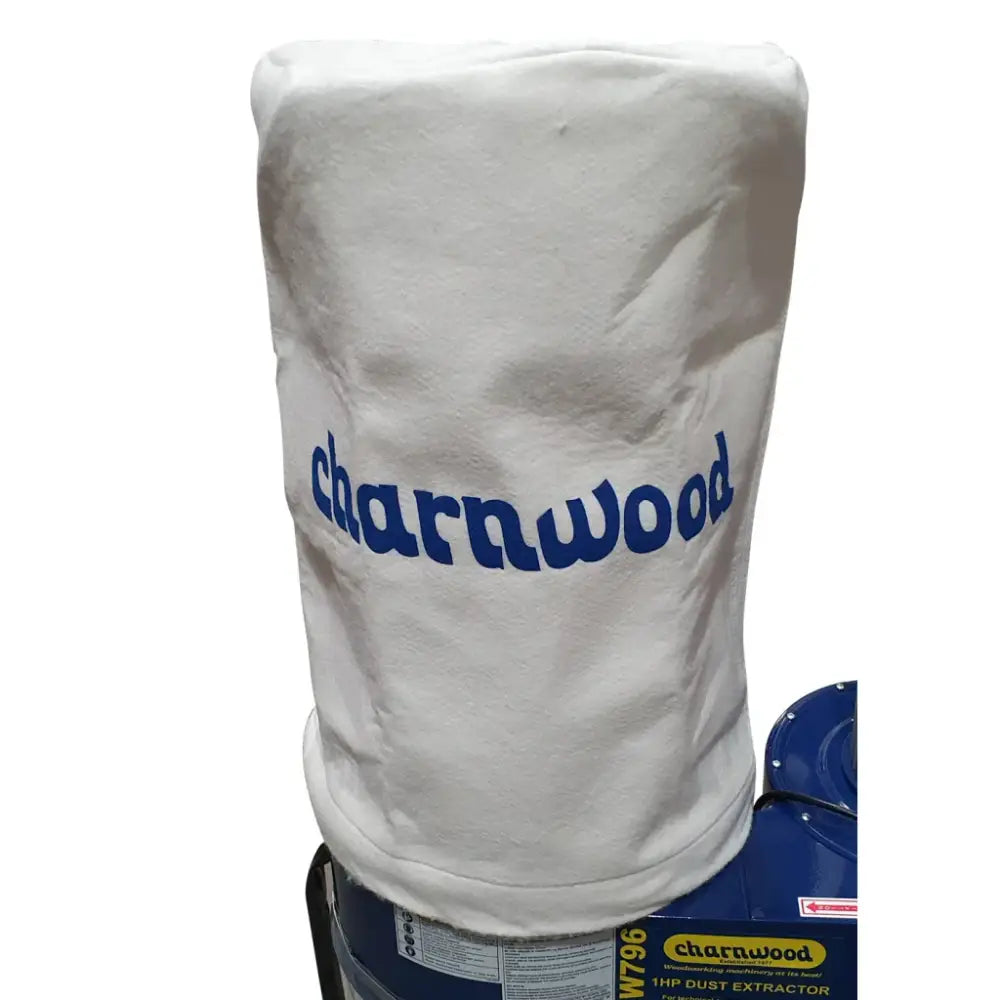

The included 2 micron fine mesh cotton filtration bag captures even fine particulate matter, while the transparent, heavy-gauge plastic collection bag allows for easy monitoring of dust levels and straightforward bag changes, ensuring minimal downtime for your operation. The dust extractor unit is supplied complete, featuring a 2m long, 100mm diameter flexible hose, two secure hose clips, a 100mm inlet, four smooth-gliding steering castors for effortless mobility, a 1.6m power cable, and a UK 3-pin plug—ready to run on a standard 13 amp fused supply.

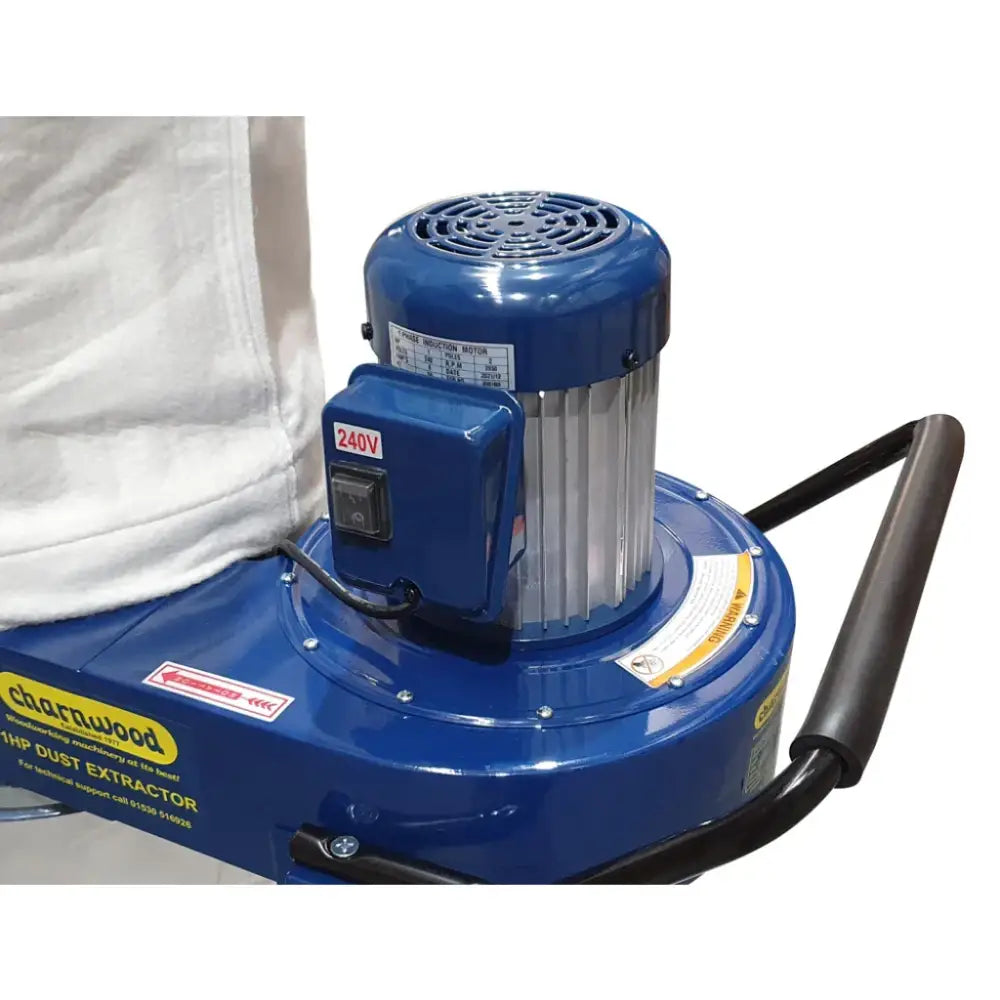

This unit offers a powerful induction motor (750w/1hp), delivering high airflow of 1000 m³/hour (750 cfm) and a maximum static pressure of 127mmAq, making it highly effective in extracting dust from cardboard shredding machines. With a spacious 70-litre bag capacity and a compact collector drum (370mm diameter), it is capable of handling continuous and demanding shredding operations. Operating at just 75 dB measured at 3m, it maintains a quiet workspace environment. Its dimensions (780mm x 390mm x 1370mm) and manageable weight (28 kg) ensure the dust extractor fits easily into most commercial and industrial setups.

• Motor (Induction): 750w (1hp)
• Voltage: 240v, 50hz
• Airflow (Without Bag): 1000 m³/hour (750cfm)
• Max. Static Pressure: 127mmAq
• Inlet Diameter: 100 mm
• Bag Capacity: 70 Litres
• Collector Drum Diameter: 370mm
• Noise Rating (@3m): 75dB
• Dimensions (WxDxH): 780mm x 390mm x 1370mm
• Weight: 28 Kg
