Cushion pack cp320s2i cardboard convertor specifications

Full specification for the Cushion Pack CP320S2i cardboard convertor—an efficient machine designed to transform used cardboard boxes into cost-effective, environmentally-friendly packaging void fill material. The Cushion Pack CP320 offers an ideal solution for companies seeking sustainable packaging alternatives and reduced costs on buying new void fill supplies. This advanced cardboard shredder provides robust performance, easy operation, and reliable output suitable for various packing requirements. Comprehensive service and sales support is available for all Cushion Pack cardboard box shredding machines, ensuring you receive expert assistance and ongoing Cardboard Shredder info for maintenance, technical advice, and maximizing your investment in sustainable packaging solutions.

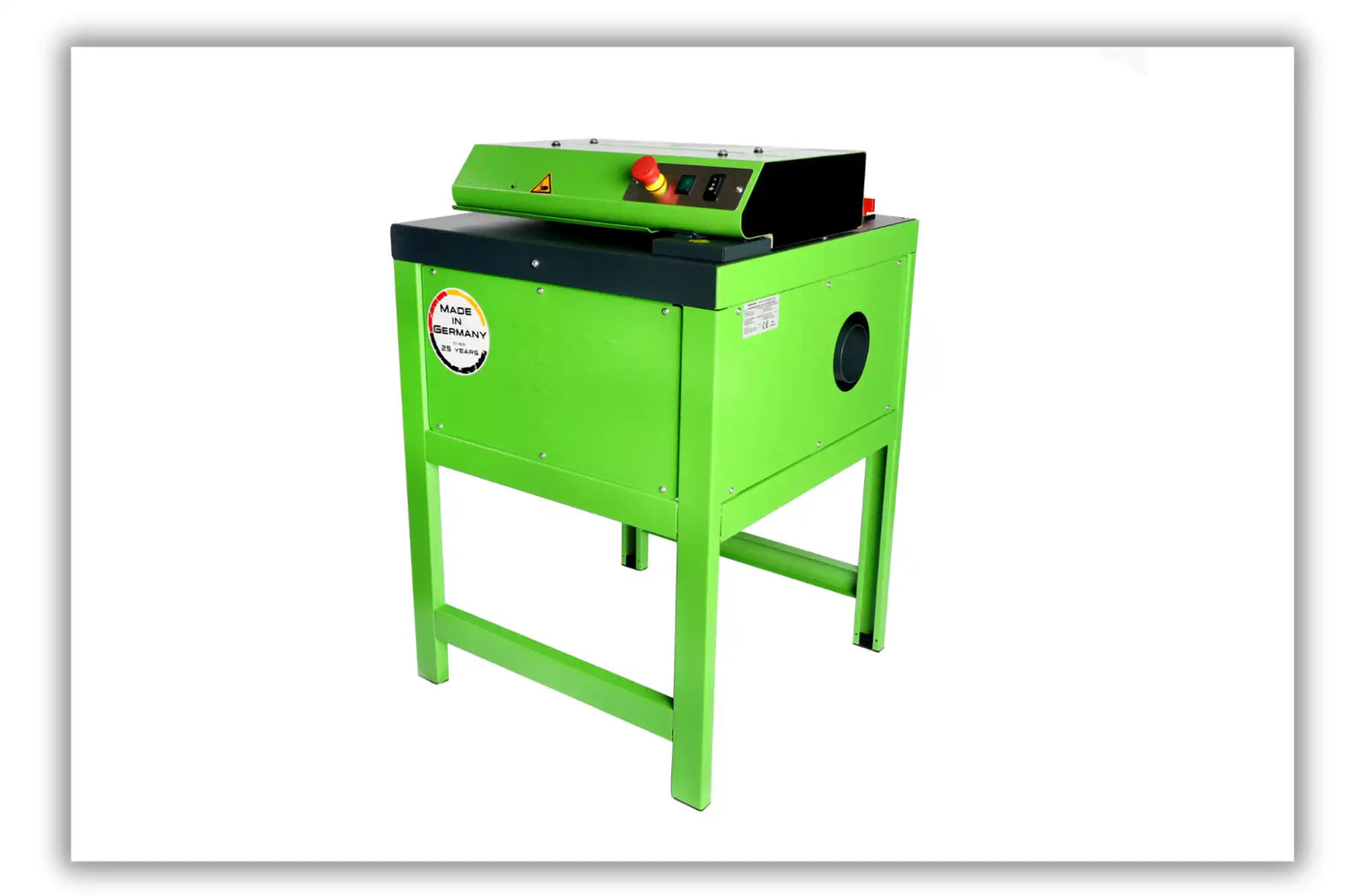

Green metal machine with controls.

Our most popular machine!. deal for small to medium sizes businesses to begin recycling their unwanted cardboard. The addition of a dust extractor ensures less dust and also prolongs he life of the machine.

Download a User Manual

Features

  • • Up to 30% energy saving with same output

    • Energy efficient drive technology

    • Single Phase

    • Built-in dust extraction device

    • Padding material up to 32cm width

    • High degree of efficiency

    • Operator friendly feeding of cartons

  • • Padding material or flat padding mats

    • High motor torque even at low speeds

    • Circuit-breaker according to IEC/EN 60204-1

    • 2 year RETURN TO BASE Warranty

    • Servicing and parts in the UK

    • Made in Germany

Technical Data

  • Loading Width (Cardboard Size) - Endless

    Cutting Width (Padding) - 320mm

    Inlet Height - 12mm

    Production Output - 2-3 cubic metre/hour

    Throughput Rate - 12m/min

    Maximum Run Time per Session - 2-3 hours

    Motor Capacity - 0.75kw/1 ph

    Main Voltage - 230V 50-60hz

    Noise Emission (No load) - 60dB(A)

    Noise Emission (Operating Cycle) 68dB(A)

    Dimensions HxWxD - 980 x 600 x 660mm

    Dust Extraction Available - Yes

    Weight - 110kg
