V20 Cross Ram Waste Baler Specification

Full specification for the LSM V20 cross ram compactor and baler used in the warehouse to make your waste material more manageable and cut down the space that waste packaging etc can take up. These balers and compactors also help keep the warehouse tidy and safe. We can offer both on site service and repair to any of the LSM waste compaction machines.

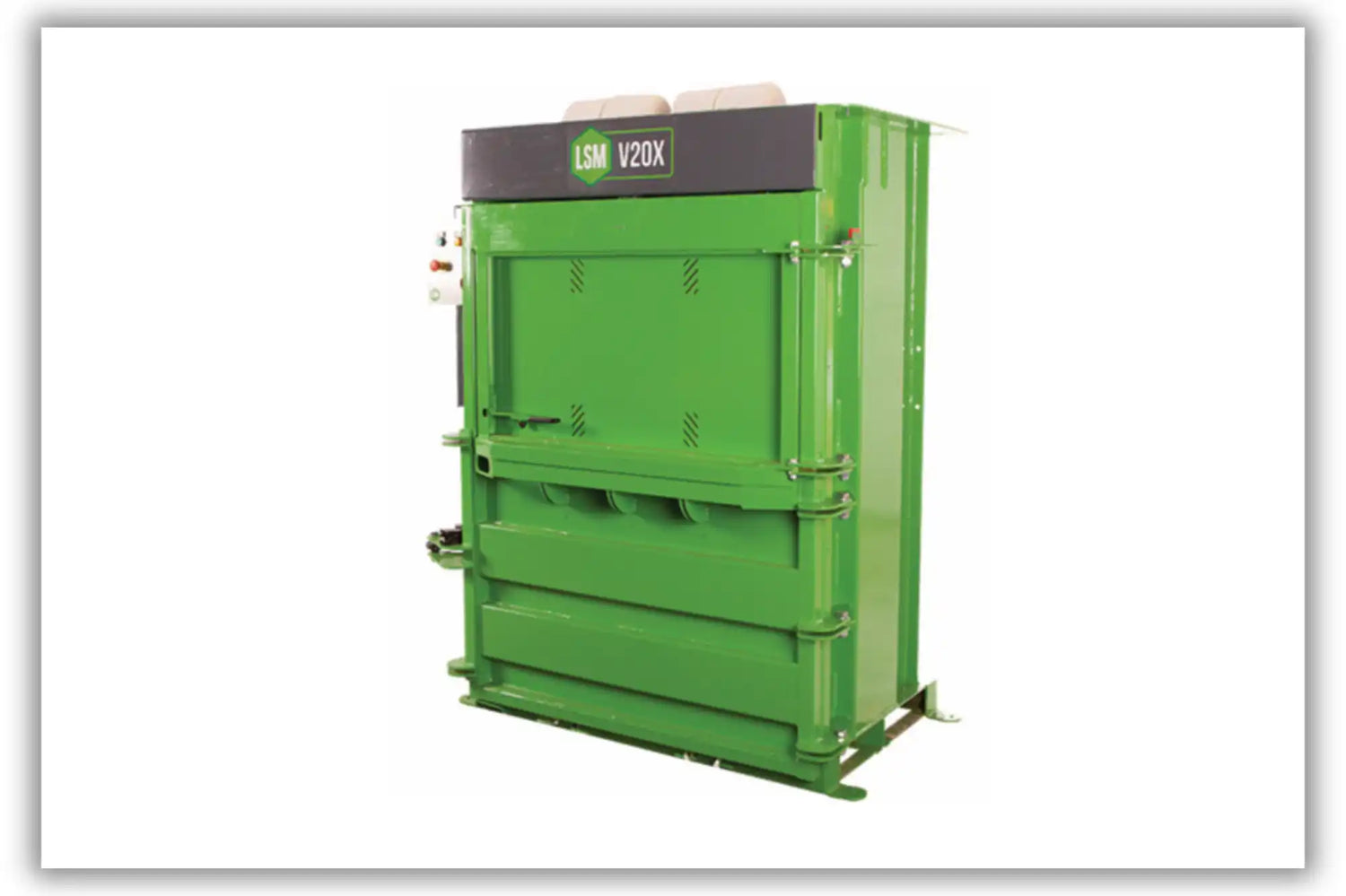

The V20X, designed with a low profile and an impressive pressing force of up to 25 tonnes, featuring a powerful cross-ram press, is the perfect solution for medium volume users facing height restrictions. Recommended for markets, stores, hotels and any medium-volume users with low ceilings or other access issues

Download a User Manual

Features

  • • Low and narrow for use in areas with 2-metre ceilings and 1-metre wide doorways

    • Easy installation offers ‘plug-and-play’ capability

    • Cross ram and long-stroke cylinder for optimum compression in a small space

    • Heavy duty door clamp

  • • High compaction ratio creates ideal 250 kg + bales

    • “Bale Full” indicator light helps ensure safe operation at multi-user sites

    • V20X can efficiently bale cardboard, plastic, paper, textile and food waste in a compact space.

    • Three phase

Technical Data

  • Bale size: 800mm H (variable) x 1100mm W x 750mm D
    Bale weight: 200–300 kg
    Cycle time: 35 Seconds
    Compaction force: up to 25 tonnes
    Dimensions: 1970mm H x695mm W x 865mm D

    Fill opening: 1100mm W x 625mm H
    Integrated bale kicker

    Machine weight: 980 kg
    Power: 3 Phase 380/400 V 3 kW motor
    Noise level: 74 dB
    EN 16,500 Compliant
    IP54 Standards
    E Power Standards
    PLC type controller with bale full light and auto cycle
