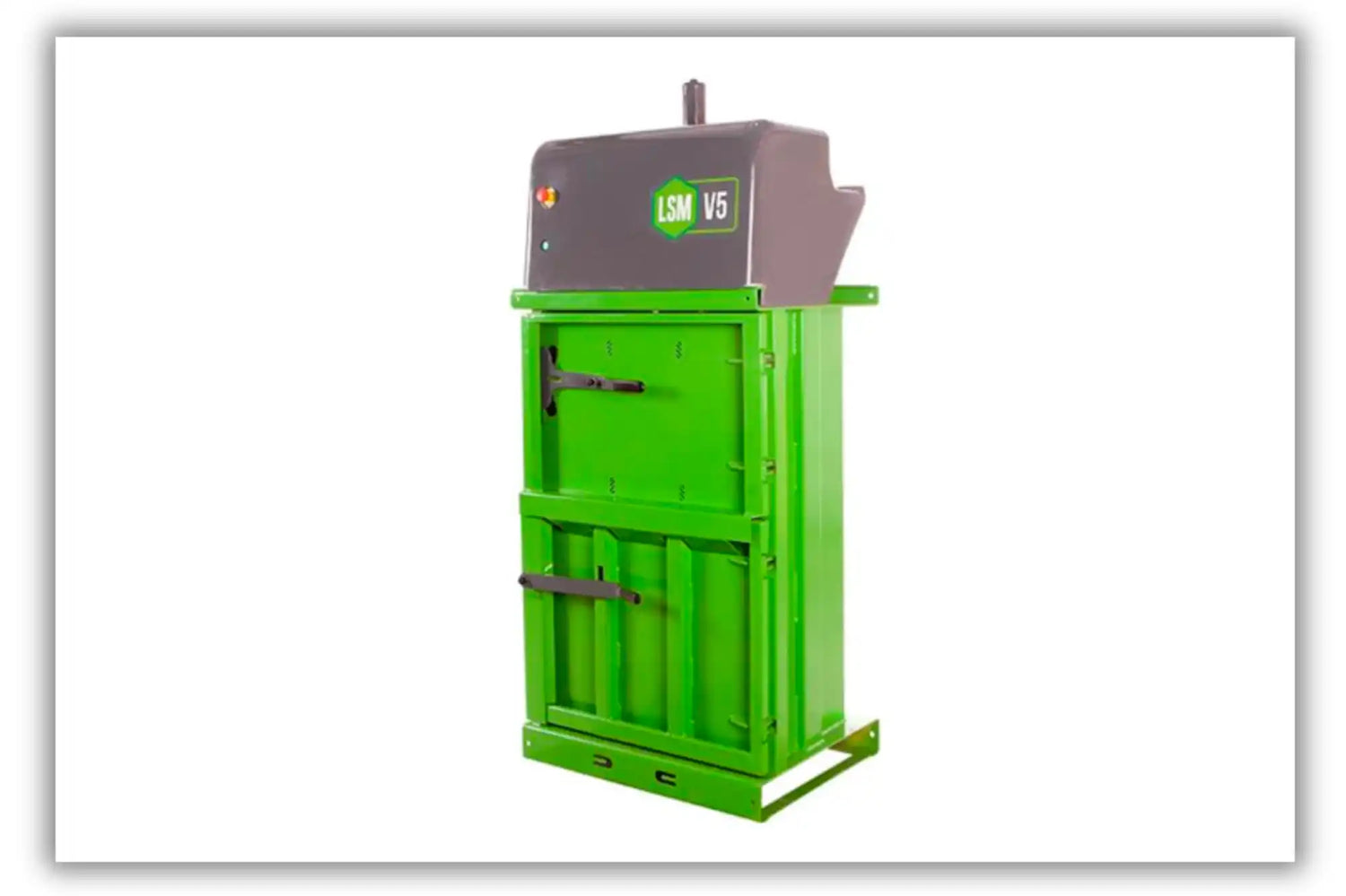

V5 Small Waste Baler Specification

Full specification for the LSM V5 waste compactor and baler used in the warehouse to make your waste material more manageable and cut down the space that waste packaging etc can take up. These balers and compactors also help keep the warehouse tidy and safe. We can offer both on site service and repair to any of the LSM waste compaction machines.

Our V5 Small Baler is versatile, efficient, and user-friendly, providing an economical waste baling solution for small and medium-sized businesses. Recommended for convenience stores, petrol stations, hotels, restaurants, retail and small
manufacturing companies.

Download a User Manual

Features

  • • High compaction ratio and large fill chamber

    • Low-voltage user controls for added safety

    • 28-second cycle time

    • Integrated kicker for easy bale removal

    • 750mm wide bales fit through all standard doorways

  • • LC controller with automatic cycle

    • Automatic and manual bale cycles

    • Bales cardboard, plastic, textile, paper, polystyrene and food waste

    • Single phase

    • Easy-tie system

Technical Data

  • Bale size: 700mm H (variable) x 750mm W x 500mm D
    Bale weight: 50–100 kg
    Cycle time: 28 seconds
    Compaction force: up to 5 tonnes
    Dimensions: 2015mm H x 70mm W x 655mm D
    Fill opening: 750mm W x 385mm H

    Integrated bale kicker
    Machine weight: 340 kg
    Power: single phase 220V 50 Hz 1.5 kW motor
    Noise level: 70 dB
    e-Power
    EN 16,500 Compliant
    IP54 Standards
    PLC controller with automatic cycle
