Cardboard box recycling dust extractor specifications

Full specification for the dust extraction unit that convert used cardboard boxes and turns them into a cost effective planet friendly packaging void fill material. We off a full service and sales backup for cardboard box shredding machines right here in Chesterfield

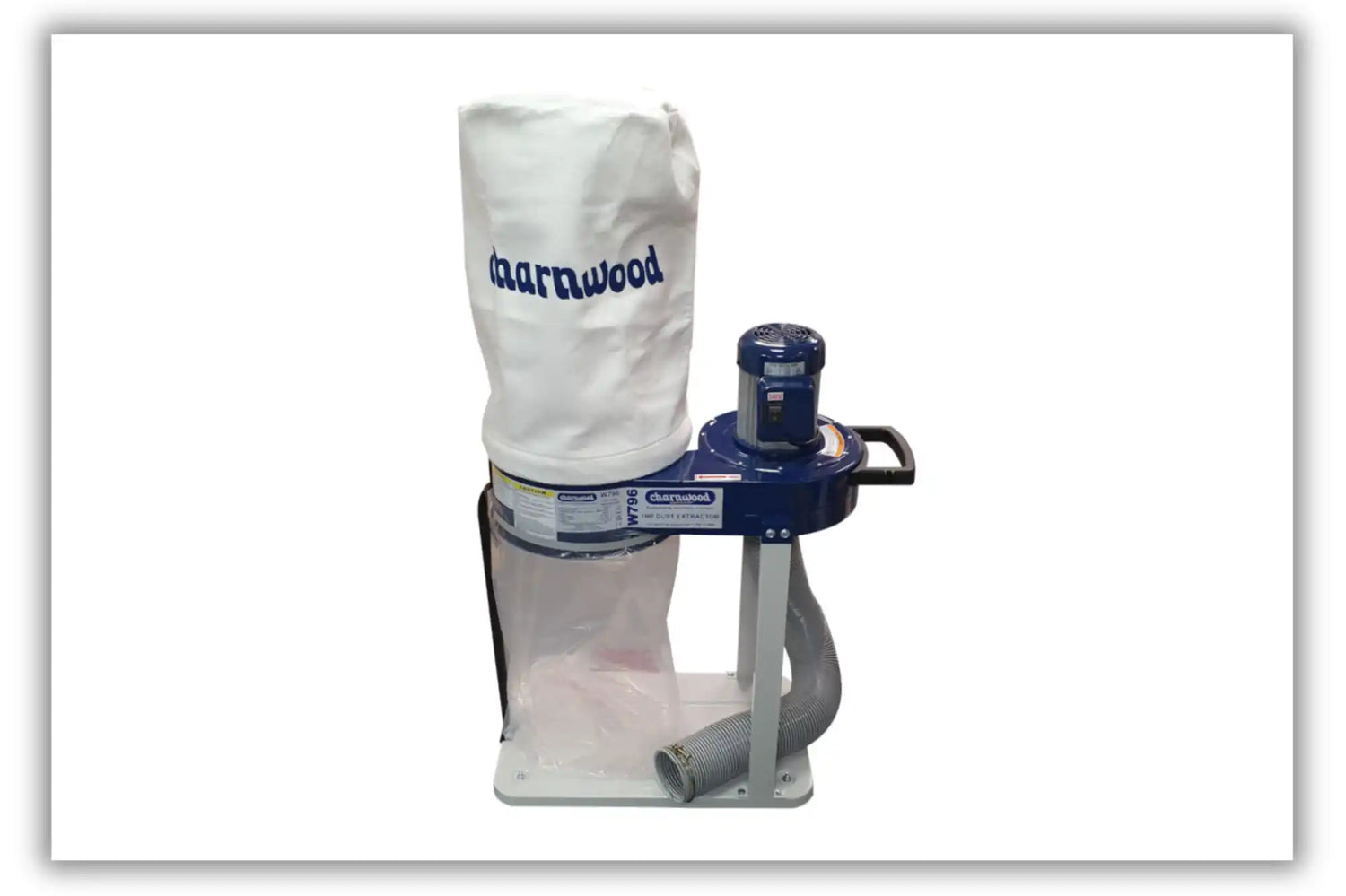

Blue and white dust collector.

Our portable dust extractor by Charnwood collects and reduces airborne dust and cardboard particles when used with our Cardboard Shredders. It also helps to keep the cutting head of the machine clean, therefore prolonging the life of the machine.

Download a User Manual

Features

  • • Single phase 13amp supply

    • Can run up to 8 hours a day

    • Ample 1000m3/Hour Flowrate

    • Transparent Collection bag

    • 2 micron fine mesh filtration bag

    • Wheels Included For Portability

  • • Professional quality motor

    • Quiet Induction Motor

    • Supplied with ‘indestructible’ steel fan

    • 1.6m power cable

    • Left Hand hose thread so for quick connector use

    • Creates a cleaner, healthier environment

Technical Data

  • Motor (Induction) -750w(1hp)

    Voltage - 240v, 50hz

    Airflow (Without Bag) - 1000 m3/hour (750cfm)

    Max. Static pressure - 127mmAq

    Inlet Diameter- 100 mm

    Bag Capacity -70 Litres

    Collector Drum Diameter -370mm

    Noise Rating - (@3m)75dB

    Dimensions (WxDxH) - 780mm x 390mm x 1370mm

    Weight - 35 Kg

    Assembly Time Required - 45 Minutes

    Product Guarantee - 5 Years
