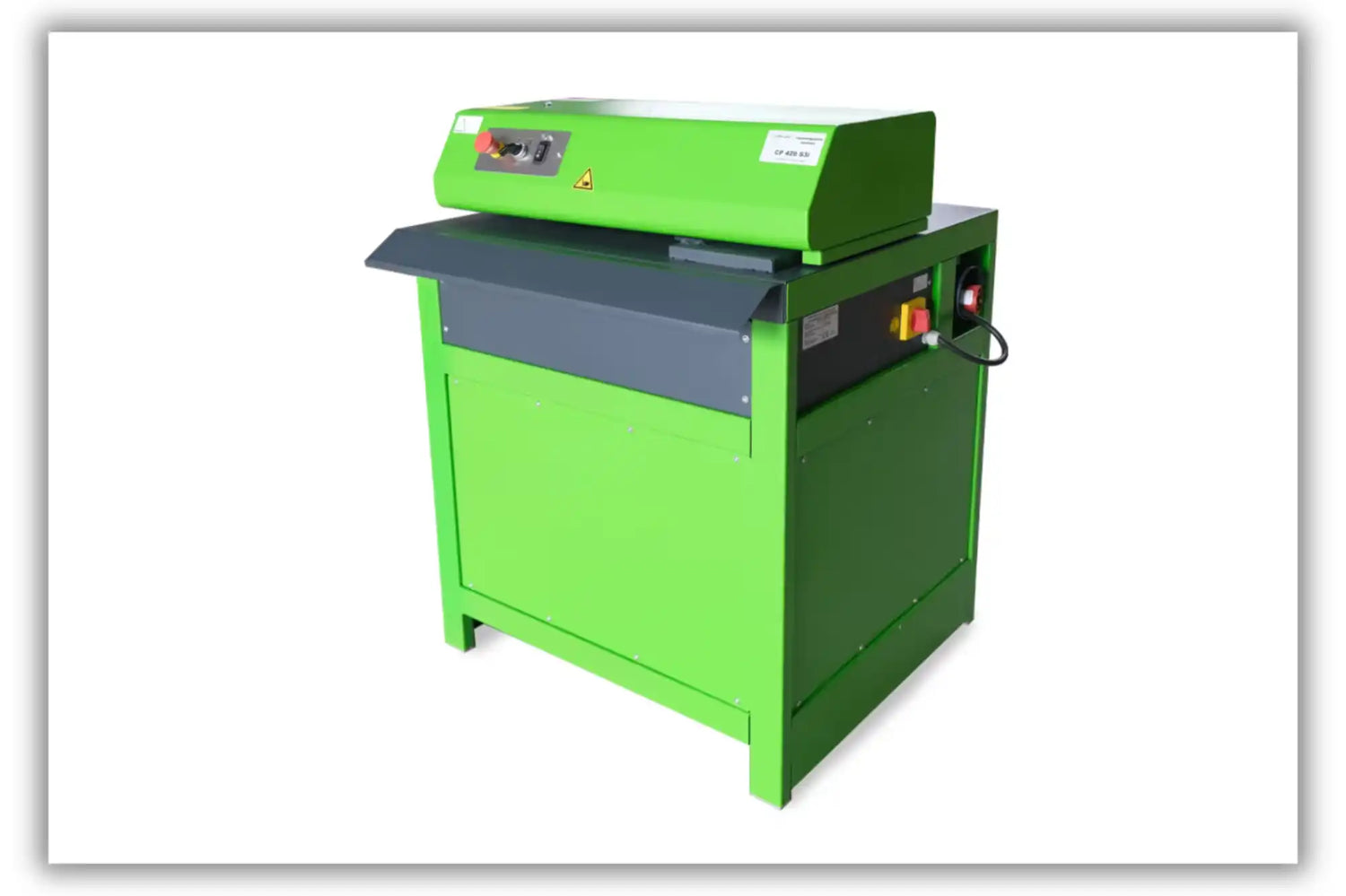

CP428S3-3ph Product Data

Full specification for the Cushionpack CP428S2i 3 phase cardboard waste convertor that will take used cardboard boxes and turn them into a cost effective planet friendly packaging void fill material. We offer a full service and sales backup for cardboard box shredding machines right here in Chesterfield.

The only shredding machine on the UK market that has an intelligent stop start system that helps the machine last longer.

A higher volume shredding machine that can produce up to 9 cubic metres of void fill per hour and with a 20mm inlet height it is the most versatile machine of its type when larger amounts of packaging void fill are required.

Download a User Manual

Features

  • • Three phase 3kw power supply

    • Built-in dust extraction device

    • Padding material up to 42cm width

    • 20mm inlet height

    • High production output

    • Inverter technology inside

    • 2 speed powerful gearbox motors

  • • Padding material or flat padding mats

    • High motor torque even at low speeds

    • High Dynamics

    • Circuit-breaker according to IEC/EN 60204-1

    • 2 year RETURN TO BASE Warranty

    • Servicing and parts in the UK

    • Made in Germany

Technical Data

  • Loading Width (Cardboard Size) - Endless

    Cutting Width (Padding) - 420mm

    Inlet Height - 20mm

    Production Output - 6-9 cubic metre/hour

    Throughput Rate - 14m/min

    Maximum Run Time per Session - 4 hours

    Motor Capacity - 3.0kw/3 ph

    Main Voltage - 400V 50-60hz

    Noise Emission (No load) - 61dB(A)

    Noise Emission (Operating Cycle) 71dB(A)

    Dimensions HxWxD - 1100 x 750 x 800mm

    Dust Extraction Available - Yes

    Weight - 245kg
